Soquete Intel® LGA 1700: Pronto para processadores Intel® de 12ª e 13ª geração

Solução de energia aprimorada: 10+1 DrMOS, PCB com 6 camadas, conectores ProCool, bobinas e capacitores duráveis para fornecimento de energia estável

Conectividade de última geração: memória DDR5, PCIe® 5.0, Ethernet Intel® 1 Gb, USB 3.2 Gen2x2 Tipo-C®, USB 3.2 Gen 1 Tipo-C® para painel frontal, suporte para header Thunderbolt™ (USB4®)

Tecnologia de memória exclusiva: ASUS Enhanced Memory Profile II e ASUS OptiMem II

Refrigeração abrangente: dissipadores de calor para VRM ampliados, dissipador de calor para PCH, headers para ventoinha híbridos e Fan Xpert 4 com AI Cooling II

- Marca: Asus

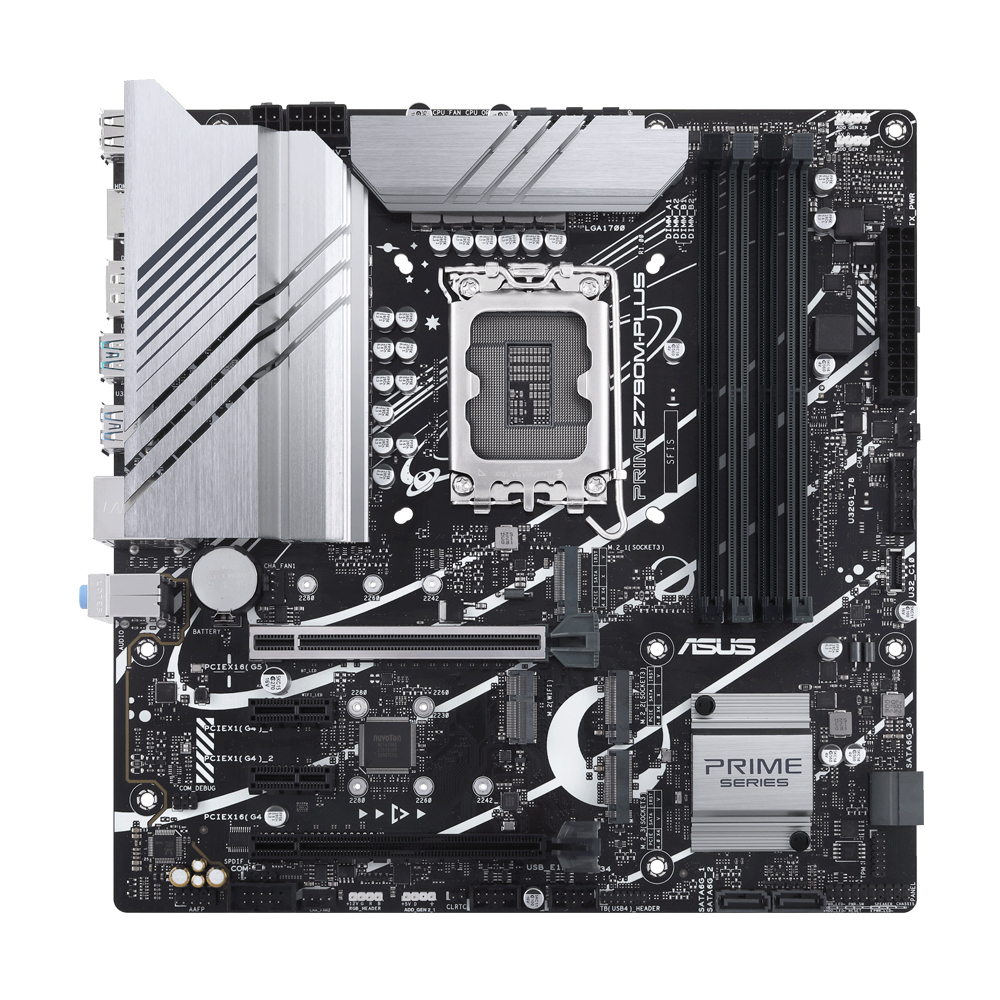

- Modelo: Prime Z790M-Plus

- SKU: 6017

ESPECIFICAÇÕES:

CPU

Soquete Intel® LGA1700 para processadores Intel® Core™ de 13ª geração e Intel® Core™, Pentium® Gold e Celeron® de 12ª geração*

Suporta Tecnologia Intel® Turbo Boost 2.0 e Tecnologia Intel® Turbo Boost Max 3.0**

*Consulte www.asus.com para obter a lista de suporte de CPU.

** O suporte da tecnologia Intel® Turbo Boost Max 3.0 depende dos tipos de CPU.

Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors*

Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

* Refer to www.asus.com for CPU support list.

** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

Chipset Intel® Z790

Intel® Z790 Chipset

Memória

4 x DIMM, máx. 192 GB, Memória DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered*

Arquitetura de memória Dual Channel

Suporta Intel® Extreme Memory Profile (XMP)

* Os tipos de memória suportados, a taxa de dados (velocidade) e o número de módulos DRAM variam dependendo da CPU e da configuração da memória. Para obter mais informações, consulte a lista de suporte de CPU/memória na guia Suporte do site de informações do produto ou visite https:// www.asus.com/support/.

4 x DIMM, Max. 192GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*

Dual Channel Memory Architecture

Supports Intel® Extreme Memory Profile (XMP)

OptiMem II

* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.

* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Gráficos

1 x porta VGA

1 porta HDMI®**

*As especificações gráficas podem variar entre os tipos de CPU. Consulte www.intel.com para obter atualizações.

** Suporta 4K a 60 Hz conforme especificado em HDMI® 2.1.

1 x DisplayPort**

1 x HDMITM port***

*Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.

**Supports max. 4K@60Hz as specified in DisplayPort 1.4.

***Supports 4K@60Hz as specified in HDMI 2.1.

Slots de Expansão

Processadores Intel® de 13ª e 12ª geração

1 slot PCIe 5.0 x16

Chipset Intel® Z790

1 x slot PCIe 4.0 x16 (suporta modo x4)

2 slots PCIe 4.0 x1

* Favor verificar a tabela de bifurcação PCIe no site de suporte (https://www.asus.com/support/FAQ/1037507/).

- Para garantir a compatibilidade do dispositivo instalado, consulte https://www.asus.com/support/ para obter a lista de periféricos suportados.

Intel® Core™ Processors (14th & 13th & 12th Gen)*

1 x PCIe 5.0 x16 slot

Intel® Z790 Chipset

1 x PCIe 4.0 x16 slot (supports x4 mode)

2 x PCIe 4.0 x1 slots

* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).

- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

Armazenamento

Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*

Intel® Core™ Processors (14th & 13th & 12th Gen)

M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

Intel® Z790 Chipset

M.2_2 slot (Key M), type 2260/2280 (supports PCIe 4.0 x4 mode)

M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)

4 x SATA 6Gb/s ports

* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.

Rede

1 x Intel® 1Gb Ethernet

ASUS LANGuard

Wireless & Bluetooth

M.2 slot only (Key E, CNVi & PCIe)*

*Wi-Fi module is sold separately.

USB

Rear USB (Total 8 ports)

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)

1 x USB 3.2 Gen 2 port (1 x Type-A)

4 x USB 3.2 Gen 1 ports (4 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

Front USB (Total 7 ports)

1 x USB 3.2 Gen 1 connector (supports USB Type-C®)

1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports

2 x USB 2.0 headers support 4 additional USB 2.0 ports*

* USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.

Áudio

Realtek 7.1 Surround Sound High Definition Audio CODEC*

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

- Supports up to 24-Bit/192 kHz playback

Audio Features

- Audio Shielding

- Premium audio capacitors

- Dedicated audio PCB layers

* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Portas I/O no painel Traseiro

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)

1 x USB 3.2 Gen 2 port (1 x Type-A)

4 x USB 3.2 Gen 1 ports (4 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

1 x DisplayPort

1 x HDMITM  port

1 x Intel® 1Gb Ethernet port

3 x Audio jacks

Painel Interno

Fan and cooling related

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

1 x 4-pin AIO Pump header

3 x 4-pin Chassis Fan headers

Power related

1 x 24-pin Main Power connector

1 x 8-pin + 12V Power connector

1 x 4-pin + 12V Power connector

Storage related

3 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 1 connector (supports USB Type-C®)

1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports

2 x USB 2.0 headers support 4 additional USB 2.0 ports

Miscellaneous

3 x Addressable Gen 2 headers

1 x Aura RGB header

1 x Clear CMOS header

1 x COM Port header

1 x Front Panel Audio header (AAFP)

1 x M.2 slot (Key E)

1 x S/PDIF Out header

1 x SPI TPM header (14-1pin)

1 x 20-3 pin System Panel header with Chassis intrude function

1 x Thunderbolt™ (USB4®) header

Recursos Especiais

ASUS 5X PROTECTION III

- DIGI+ VRM (- Digital power design with DrMOS)

- LANGuard

- Overvoltage Protection

- SafeSlot Core+

- Stainless-Steel Back I/O

ASUS Q-Design

- Q-DIMM

- Q-LED Core

- Q-Slot

ASUS Thermal Solution

- VRM heatsink design

ASUS EZ DIY

- ProCool

Aura Sync

- Aura RGB header

- Addressable Gen 2 headers

Recursos de Software

ASUS Exclusive Software

Armoury Crate

- Aura Sync

- Fan Xpert 4 (with AI Cooling II)

- Power Saving

AI Suite 3

- TurboV EVO

- DIGI+ VRM

- PC Cleaner

ASUS CPU-Z

Norton 360 Deluxe (60 Days Free Trial)

WinRAR

UEFI BIOS

ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

- ASUS UEFI BIOS EZ Mode

BIOS

192 (128+64) Mb Flash ROM, UEFI AMI BIOS

Gerenciamento

WOL by PME, PXE

Sistema Operacional

Windows® 11, Windows® 10 64-bit

Formato

mATX Form Factor

9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
